What Is the Working Principle Behind European Brake Shoes?

The Fundamental Mechanics Behind European Brake Shoes

European brake shoes are a core component of drum brake systems, widely used in the rear axles of passenger cars, light commercial vehicles, and trailers across European vehicle platforms. Unlike disc brakes, which rely on pads clamping onto a rotor, drum brakes use curved shoes that press outward against the inner surface of a rotating drum to generate friction and slow the vehicle. Understanding how these shoes function mechanically helps explain why they remain a cost-effective and durable choice for many European-manufactured vehicles, particularly in rear-wheel applications where lighter braking force is required.

The working principle centers on converting kinetic energy into heat through controlled friction. When the brake pedal is pressed, hydraulic pressure or mechanical force activates a wheel cylinder or actuator, which pushes the brake shoes outward. The friction lining bonded to each shoe makes contact with the drum's inner wall, creating resistance that slows the wheel's rotation.

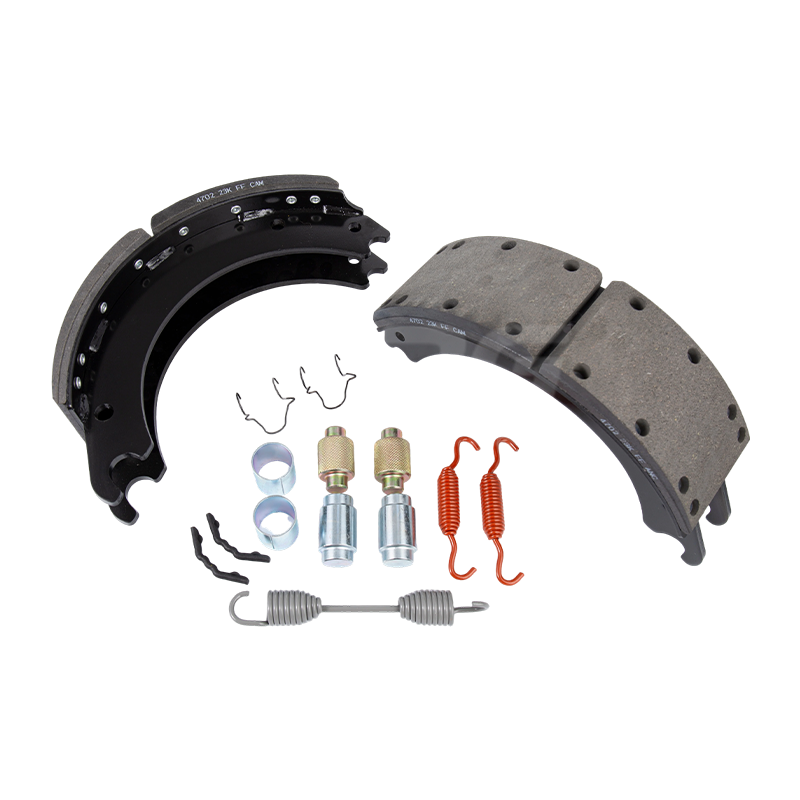

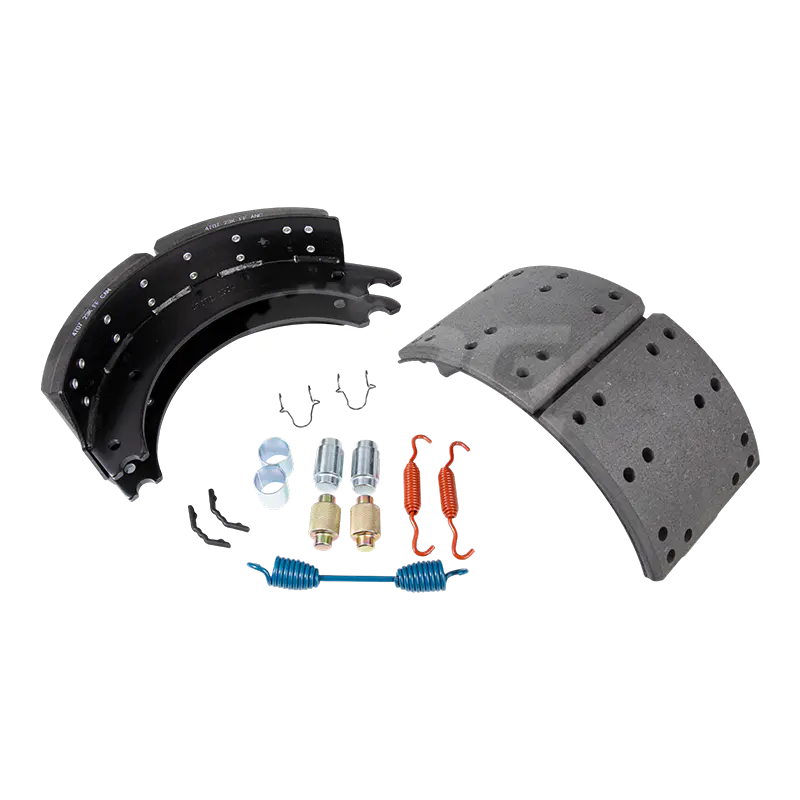

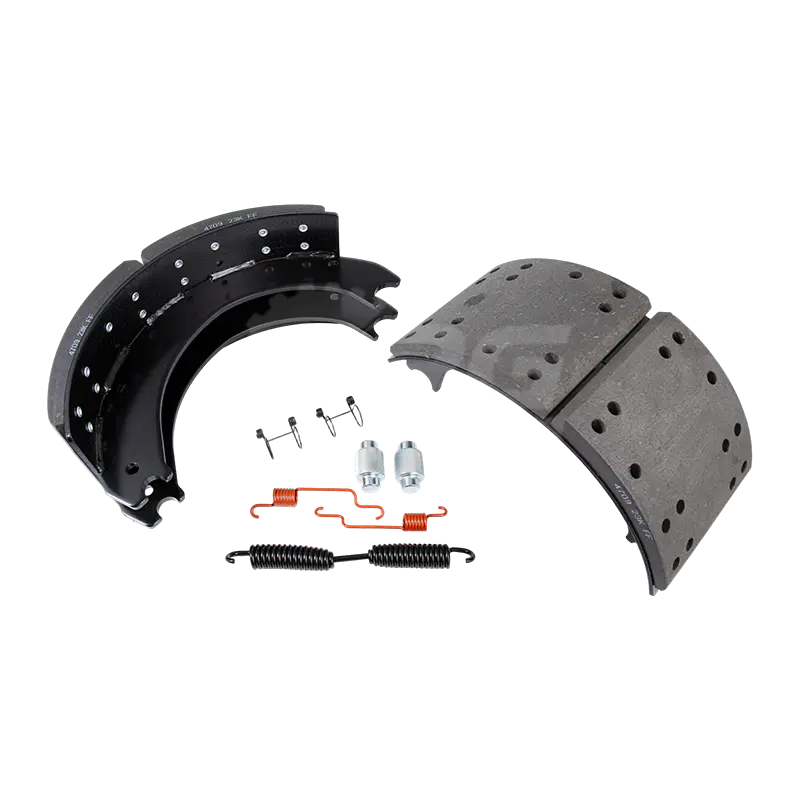

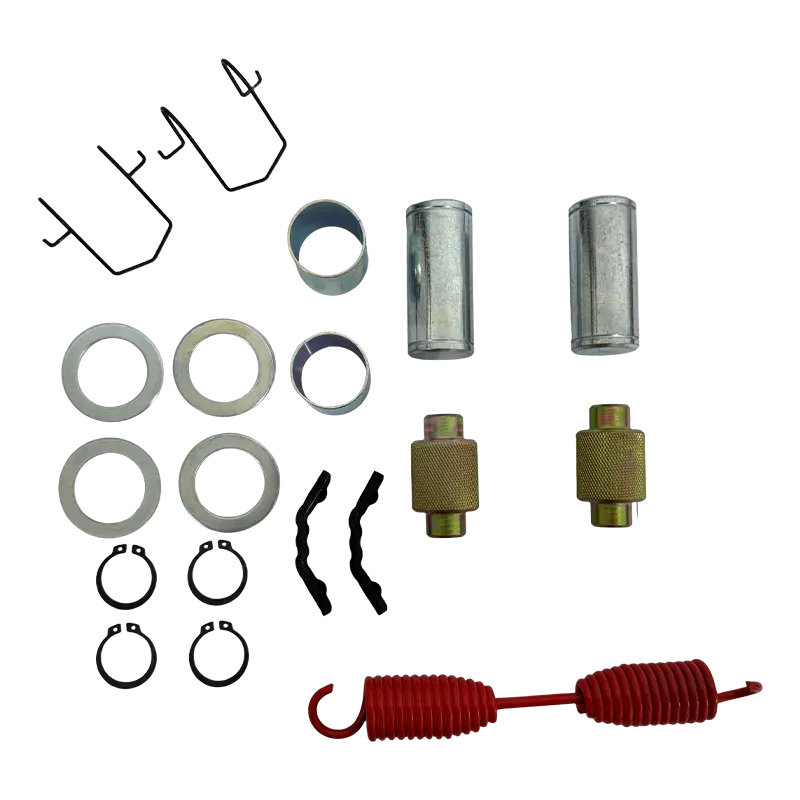

Core Components That Make Up the Brake Shoe Assembly

To fully understand the working principle, it helps to break down the individual parts that work together within a European drum brake system.

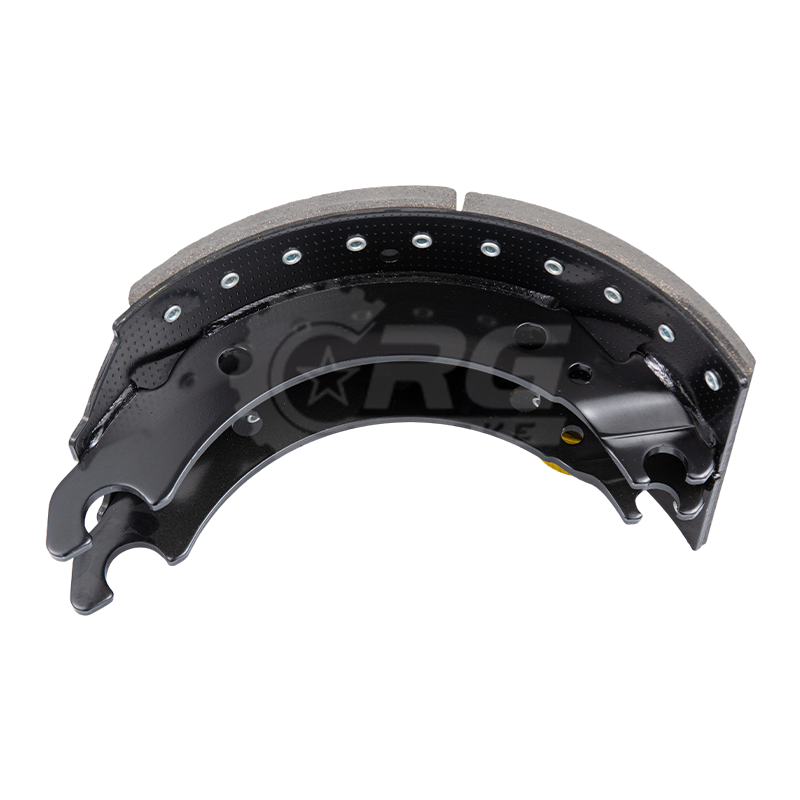

Shoe Frame and Friction Lining

The shoe frame is typically a curved steel structure that holds the friction lining material in place. European brake shoes commonly use semi-metallic or ceramic-based friction compounds bonded or riveted to the frame, chosen for their ability to maintain stable friction coefficients across a wide temperature range, which is important given the varied climates and driving conditions found throughout European roads.

Wheel Cylinder

The wheel cylinder converts hydraulic pressure from the brake master cylinder into mechanical force. When brake fluid pressure increases, pistons inside the wheel cylinder push the shoes apart and into contact with the drum.

Return Springs

Return springs are responsible for pulling the shoes back to their resting position once the brake pedal is released. Without properly functioning return springs, the shoes could remain partially engaged, causing excessive wear, overheating, or reduced fuel efficiency.

Adjuster Mechanism

As the friction lining wears down over time, the gap between the shoe and drum increases. The self-adjusting mechanism compensates for this wear automatically, maintaining consistent pedal feel and braking performance without requiring frequent manual adjustment.

Step-by-Step Breakdown of the Braking Cycle

The following table outlines the sequence of events that occur during a single braking action, from pedal engagement to release.

Why Friction Material Composition Matters

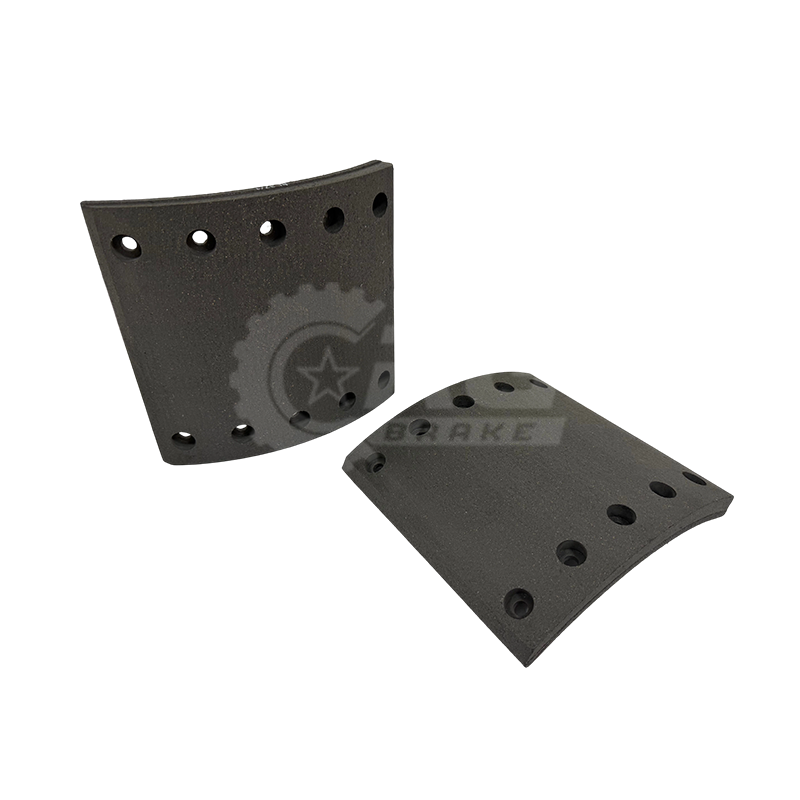

The performance of a European brake shoe depends heavily on the composition of its friction lining. Manufacturers typically formulate linings using a blend of fibers, resins, and fillers designed to balance friction consistency, heat resistance, and noise reduction. A lining with too aggressive a friction coefficient can cause grabby braking and premature drum wear, while a lining that is too soft may lead to fade under sustained braking, such as during long descents on mountainous European roads.

Many European-spec brake shoes are engineered to comply with ECE R90 standards, which regulate friction performance, thermal stability, and wear characteristics to ensure consistent stopping power across a wide range of operating conditions.

Self-Adjusting Systems and Their Role in Consistent Performance

One of the defining features of modern European brake shoe systems is the self-adjusting mechanism. As the friction lining gradually wears thinner, the distance the shoe must travel to contact the drum increases. Without compensation, this would result in a spongy or delayed brake pedal feel over time.

The self-adjuster typically works through a ratcheting lever connected to the parking brake cable or a star-wheel adjuster mechanism. Each time the brakes are applied while the vehicle moves in reverse, or through cable-actuated movement during forward braking depending on the design, the adjuster incrementally closes the gap between the shoe and drum, maintaining consistent contact and pedal response.

Common Signs of Wear and Functional Decline

Recognizing the symptoms of worn brake shoes allows for timely replacement before performance is compromised.

• A grinding or scraping noise during braking, indicating the friction lining has worn down to the metal shoe frame.
• Reduced braking efficiency, requiring firmer pedal pressure to achieve the same stopping power.
• A pulling sensation to one side during braking, often caused by uneven shoe wear or a stuck wheel cylinder piston.
• Vibration or pulsation felt through the brake pedal, which may indicate an out-of-round drum or uneven lining contact.
• A parking brake that feels loose or requires excessive travel before engaging, often linked to worn shoes or a maladjusted self-adjuster.

How Drum Design Influences Brake Shoe Performance

The interaction between the brake shoe and the drum is central to overall braking effectiveness. European drum designs often incorporate finned or ventilated surfaces to improve heat dissipation, reducing the risk of thermal fade during repeated braking cycles. The internal diameter and surface finish of the drum must remain within precise tolerances, as an out-of-round or heavily scored drum can cause uneven contact with the shoe lining, leading to pulsation, reduced stopping power, and accelerated wear.

Proper machining or replacement of the drum, when paired with new brake shoes, ensures that the friction surfaces mate correctly, allowing the self-adjusting mechanism and shoe geometry to function as designed.

Maintenance Practices That Extend Brake Shoe Lifespan

Routine maintenance plays a significant role in preserving the working efficiency of the brake shoe assembly.

• Periodically inspecting the drum interior for scoring, glazing, or uneven wear patterns that could affect shoe contact.
• Lubricating the shoe contact points and adjuster mechanism with high-temperature brake grease to prevent binding or sticking.
• Checking return springs and hold-down hardware for signs of fatigue, since weakened springs can affect shoe retraction.
• Verifying that the self-adjuster mechanism moves freely and engages correctly during routine service intervals.

Selecting Quality Replacement Shoes for Long-Term Reliability

When replacement becomes necessary, choosing brake shoes manufactured to match original equipment specifications ensures proper fitment, consistent friction performance, and compliance with regional safety standards. Factors such as lining thickness, curvature radius, and mounting hole alignment must correspond precisely to the vehicle's original design to avoid uneven wear or diminished stopping power. Selecting shoes tested under standardized friction and thermal conditions provides confidence that the replacement will perform reliably across varying driving conditions, from urban stop-and-go traffic to sustained highway speeds.
